Mantiuk 2006 tone mapping example

Original image

Mantiuk 2006 tone mapping example

Filter applied with default settings, after changing image precision in GIMP to 32-bit floating point linear light.


This filter can be used to adapt an image, which may have a high dynamic range (HDR), for presentation using a low dynamic range. This operation constrains contrasts across multiple spatial frequencies, producing luminance within the range 0.0-1.0.

This tonemapping approach was originally presented by Rafał Mantiuk, Karol Myszkowski, Hans-Peter Seidel. A Perceptual Framework for Contrast Processing of High Dynamic Range Images (revised and extended version). In: ACM Transactions on Applied Perception 3, 3 (2006), pp. 286-308.

[]

This filter is slow on larger images. For finding the best settings for your image you could make a small relevant selection first and save that as a preset before using that for the whole image.

You can access this command from the main menu through Colors → Tone Mapping → Mantiuk 2006….

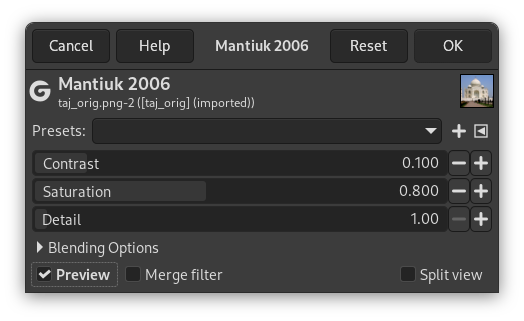

The Mantiuk 2006 filter Dialog

Presets, Input Type, Clipping, Blending Options, Preview, Merge filter, Split view
[]

These options are described in .

Contrast

The amount of contrast compression.

Saturation

Global color saturation factor.

Detail

This parameter is not working and can be ignored. It will be removed in the future.
