14.10. Difference Clouds

14.10.1. Overview

Obrázok 17.355. Example of Difference Clouds

Example of Difference Clouds

Filter Difference Clouds applied


Difference Clouds command changes colors partially in cloud-like areas: The filter renders Solid Noise cloud in an automatically created new layer, and sets the layer mode to Difference, then merges this layer over the specified image.

If the image is in indexed colors, this menu entry is disabled.

14.10.2. Activating the Filter

This filter is found in the main menu under FiltersRenderNoiseDifference Clouds.

14.10.3. Options

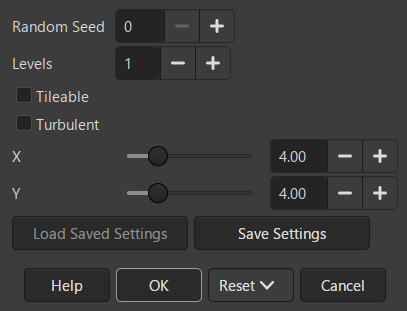

Obrázok 17.356. Difference Clouds filter options

“Difference Clouds” filter options

Random seed

This option controls the randomness of the filter. The Random seed box lets you manually enter a seed for the randomization algorithm used. A different random seed produces different results.

Levels

This controls the level of detail in the noise texture. Higher values give a higher level of detail, and the noise seems to be made of spray or small particles, which makes it feel hard. A low value makes it more soft and cloudy.

Tileable

If you check Tileable, you'll get a noise that can be tiled seamlessly in a grid. The left edge will align seamlessly with the right edge, and the top edge will align seamlessly with the bottom edge. Only the generated noise is tileable. The underlying image is not modified to be tileable.

Turbulent

If you check this, you'll get very interesting effects, often something that looks much like oil on water, or clouds of smoke, or living tissue, or a Rorschach blot.

X, Y

These control the size and proportion of the noise shapes in X (horizontal) and Y (vertical) directions (range 0.1 to 16.0).
