This filter curls a corner of the current layer or selection into a kind of cornet showing the underlying layer in the cleared area. A new “Curl Layer” is created. If the layer doesn't have an Alpha channel, one is added. The part of the initial layer corresponding to the curl, is made transparent.

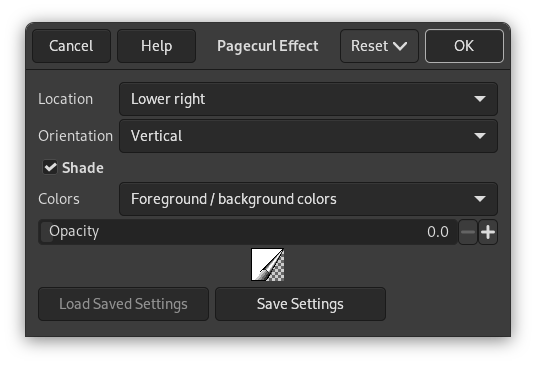

- Location
-
This lets you select the corner you want to curl. The default is the Lower right corner.
- Orientation
-
Vertical and Horizontal refer to the border you want to raise.
- Shade
-
When enabled, a shadow is added inside the cornet.
- Colors
-
This determines how the outer face of the cornet is drawn. Available options are Foreground / background colors, Current gradient, and Current gradient (reversed).
- Opacity
-
This sets the visibility of the original image beneath the cornet.
