13.11. Warp

13.11.1. Overview

This filter displaces pixels of active layer or selection according to the grey levels of a Displacement map. Pixels are displaced according to the gradient slope in the displacement map. Pixels corresponding to solid areas are not displaced; the higher the slope, the higher the displacement.

Figure 17.270.  From left to right: original image, displace map, displaced image

From left to right: original image, displace map, displaced image

Solid areas of displacement map lead to no displacement. Abrupt transitions give an important displacement. A linear gradient gives a regular displacement. Displacement direction is perpendicular to gradient direction (angle = 90°).


Figure 17.271. With a non-linear gradient

With a non-linear gradient

A non-linear gradient leads to curls.


Figure 17.272. With a complex gradient:

With a complex gradient:

And a complex gradient, such as the Solid Noise filter can create, gives a swirl effect.


This filter offers the possibility of masking a part of the image to protect it against filter action.

13.11.2. Activating the filter

This filter is found in the image window menu under FiltersMapWarp…. This filter has no Preview.

13.11.3. Options

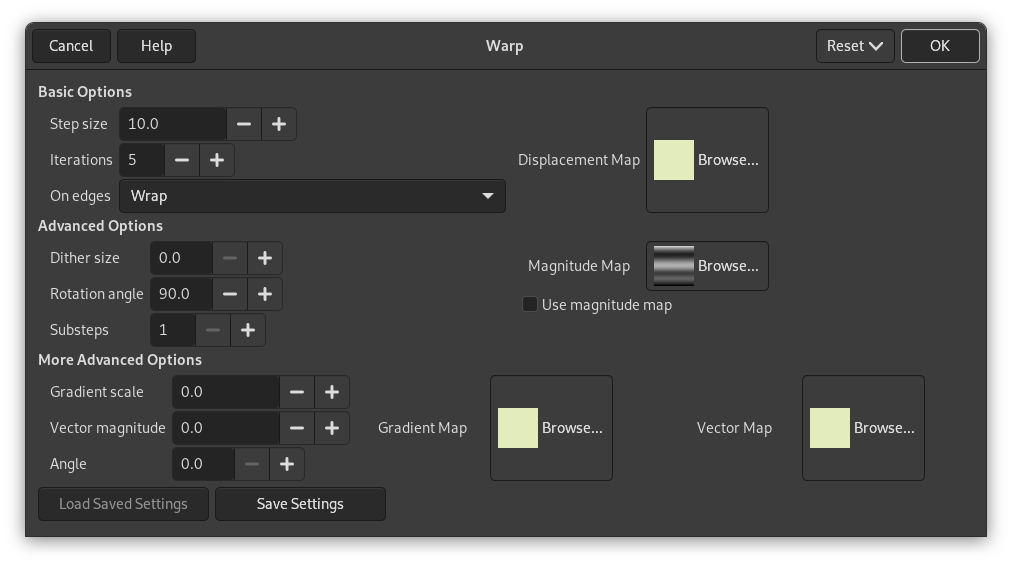

Figure 17.273. Warp filter options

Warp filter options

Basic Options

Step size

Step is displacement distance for every filter iteration. A 10 value is necessary to get a one pixel displacement. This value can be negative to invert displacement direction.

Iterations

The number of repetitions of effect when applying filter.

On edges

Because of displacement, a part of pixels are driven over the borders of layer or selection, and, on the opposite side, pixels places are emptying. Four following options allow you to fix this issue:

Wrap

What goes out on one side is going into the opposite side (this is the default).

Smear

Emptying places are filled with a spreading of the neighbouring image line.

Black

Emptying places are filled with black color.

Foreground color

Emptying places are filled with the Foreground color of the color area in Toolbox.

Displacement map

To be listed in this drop-down list, the displacement map, which should be a grayscaled image, must be present on your screen when you call filter and must have the same size as the original image.

Advanced Options

Dither size

Once all pixels displaced, this option scatters them randomly, giving grain to the image. The higher this value (0.00-100.00), the thinner the grain.

Figure 17.274. With a 3.00 dither size:

With a 3.00 dither size:

Rotation angle

This option sets displacement angle of pixels according to the slope direction of gradient. Previous examples have been created with a vertical gradient and a 90° angle: so, pixels were displaced horizontally and nothing went out of the image borders. Here is an example with a 10° angle and 6 iterations:

Figure 17.275. With a 10° angle and 6 iterations:

With a 10° angle and 6 iterations:

Displacement is made according to a 10° angle against vertical. Pixels going out the lower border on every iteration are going into through the upper border (Wrap option checked), giving a dotted line.


Substeps

If you specify a value > 1, the displacement vector is computed in several substeps, giving you a finer control to the displace process.

Magnitude map

In addition to displacement map, you can add a Magnitude map. This map should also be a grayscaled image, with the same size as the source image and which must be present on your screen when you call filter. This map gives more or less strength to filter on some parts of the image, according to the grey levels of this magnitude map. Image areas corresponding to white parts of this map will undergo all the strength of filter. Image areas corresponding to black parts of the map will be spared by filter. Intermediate grey levels will lessen filter action on corresponding areas of the image. Use magnitude map must be checked for that.

Figure 17.276. Magnitude Map example:

Magnitude Map example:

From left to right: original image, displacement map, magnitude map, after applying Warp filter. You can see that the black areas of magnitude map prevent filter to take action.


More Advanced Options

These extra options let you add two new maps, a gradient map and/or a vector map.

[Note] Note

To test these options alone, you must use a map with a solid color for all the other maps.

Gradient scale

Using a gradient map, (this map should also be a grayscaled image), the displacement of pixels depends on the direction of grayscale transitions. The Gradient scale option lets you set how much the grayscale variations will influence the displacement of pixels. On every iteration, the filter works of the whole image, not only on the red object: this explains blurredness.

Figure 17.277. Gradient scale example

Gradient scale example

From left to right: original image, Gradient map, filter applied.


In the example above, Warp filter is applied with a gradient map (Gradient scale = 10.0). Gradient is oblique, from top left to right bottom. The part of the image corresponding to the gradient is moved obliquely, 90° rotated (Rotation angle 90° in Advanced Options).

Vector mag

With this map, the displacement depends on the angle you set in the Angle text box. 0° is upwards. Angles go counter-clockwise. The vector control map determines by how many pixels the image will move on every iteration.

Figure 17.278. Vector mag example

Vector mag example

From left to right: original image, displacement map, filter applied.


In the above example, Warp filter is applied with a Vector mag. Gradient is vertical, from top to bottom. Vector angle is 45°. The image is moved obliquely, 45° to the top left corner. The image is blurred because every iteration works on the whole image, and not only on the red bar.

Angle

Angle for fixed vector map (see above).
