5.14. Video

5.14.1. Overview

Figure 17.93. Applying example for the Video Degradation filter

Applying example for the “Video Degradation” filter

Original image

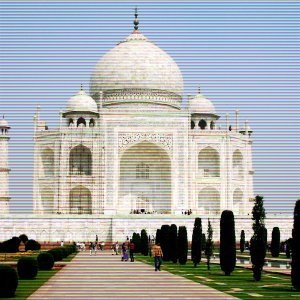

Applying example for the “Video Degradation” filter

Filter Video Degradation applied


Apply low dot-pitch RGB simulation to the specified drawable.

5.14.2. Activating the filter

You can find this filter through FiltersDistortsVideo Degradation….

5.14.3. Options

Figure 17.94. Video filter options

“Video” filter options

Presets, Input Type, Clipping, Blending Options, Preview, Split view
[Note] Note

These options are described in Section 2, “Common Features”.

Pattern

It would be rather difficult to describe what each pattern will render. It's best to see what they render in the Preview.

Additive

Set whether the function adds the result to the original image.

Rotated

Rotate the result by 90°.
