12.2. Add Bevel

12.2.1. Overview

Obrázek 17.258. Example for the „Add Bevel“ filter

Original image, the colored rectangle is selected

„Add Bevel“ applied

This filter adds a slight bevel to an image using a bump map (see below). If there is a selection, it is bevelled, otherwise the filter has no effect.

Obrázek 17.259. Another „Add Bevel“ example, with bumpmap

Original image

Bumpmap

Aktivace filtru

	Poznámka
	If the image is in grayscale mode or indexed mode, this menu entry is disabled.

12.2.2. Activating the Filter

This filter is found in the main menu under Filters → Decor → Add Bevel….

12.2.3. Options

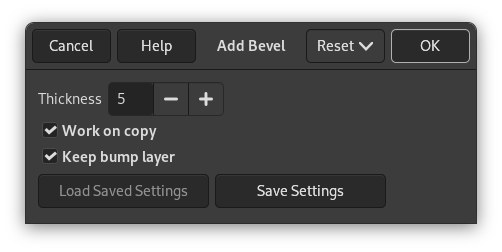

Obrázek 17.260. „Add Bevel“ options

Thickness: You can specify the thickness of the bevel, in pixels. Maximal thickness is 30 pixels.
Work on copy: Flatten image
Keep bump layer: When checked, you will keep the generated bumpmap as a new, not visible layer:

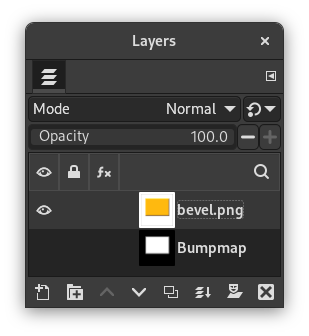

Layers Dialog with „Keep bump layer“ enabled
