8.7. Image Gradient

8.7.1. Overview

Figure 17.172. Applying example for the Image Gradient filter

Applying example for the Image Gradient filter

Original image

Applying example for the Image Gradient filter

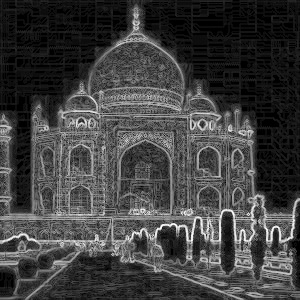

Filter Image Gradient applied with default options.

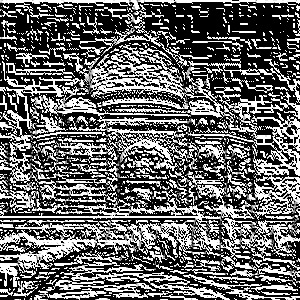

Filter Image Gradient applied with Direction option.

This filter detects edges in one or two gradient directions.

8.7.2. Activating the filter

You can find this filter through FiltersEdge-DetectImage Gradient….

8.7.3. Options

Figure 17.173. Image Gradient filter options

Image Gradient filter options

Presets, Input Type, Clipping, Blending Options, Preview, Split view
[Note] Note

These options are described in Section 2, “Common Features”.

Output mode

Magnitude is default: it combines both directions. Direction: only one direction is used. Both is like Magnitude.

Figure 17.174. Output mode examples

Output mode examples

Original image, with abrupt luminosity change

Output mode examples

Option Magnitude is selected

Output mode examples

Option Direction is selected. In result, black is no edge detected, white is edge detected.
